BS /NPT thread Malleable iron threaded fittings

FOB Reference Price:Get Latest Price
US $1,600-2,600 / Tons | 4 Ton/Tons 40,000PCS (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Material:
Iron
Technics:
Casting
Type:
Tee
Place of Origin:
Hebei, China (Mainland)
Model Number:
130
Brand Name:
Jianzhi
Connection:
Female
Shape:
Equal
Head Code:
banded
Item:
pipe fittings
Thread:
BS21/ISO7-1
Mechanical Properties:
GB/T 9440 ,KTH330-06
Overall Dimension:
BS EN1562 1997
Water Pressure Test:
Using pressure test, test not below 0.5Mpa
Thickness of Hot-Dip Galvanization:
Average Thickness of Hot-Dip Galvanization: 70um
SupplyAbility
SupplyAbility:
Ton/Tons per Year 11tons/day
Packaging & Delivery
Packaging Details
1.Carton:475mmx310mmx180mm, One container bulk 850 carton;
2.Carton:380mmx280mmx200mm, One container bulk 1400 carton;
3.One container full with iron tray(24).
Iron tray:112cmx103cmx10cm (20) 96cmx80cmx10cm(4)
Port
TIANJIN PORT
Lead Time :
25-35DAYS

Malleable iron threaded fittings

1.SIZE:3/8"-6"
2.TYPE:BANDED;BEADED
3.STD:BS EN10242;DIN EN10242
4.YIELD:80,000MT/YEAR

5.MORE THAN 4000 EMPLOYEE

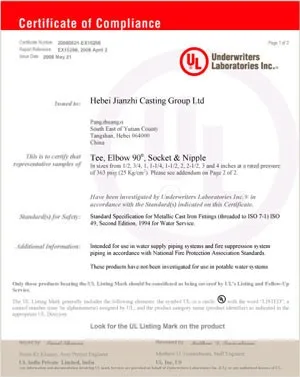

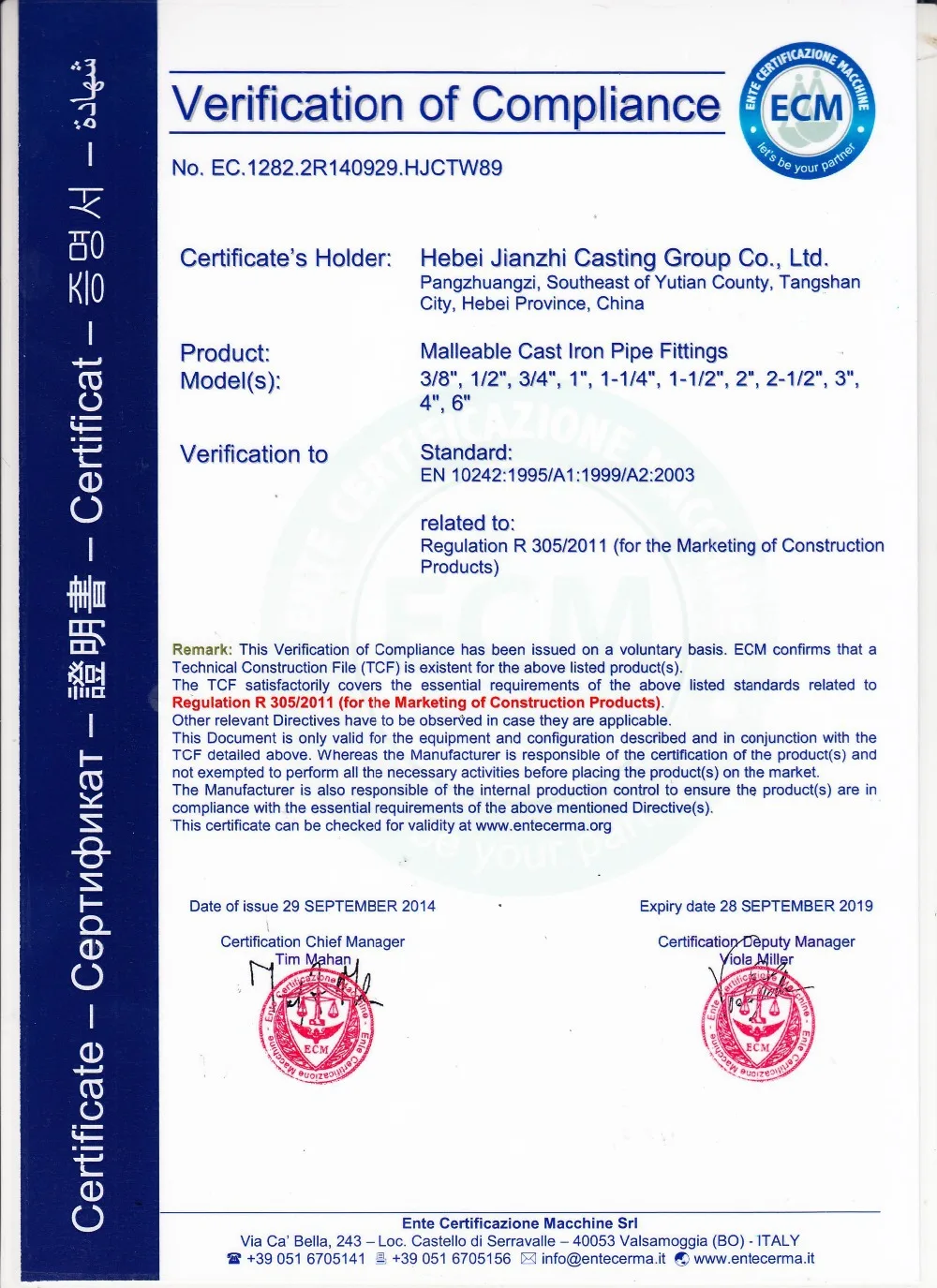

6.CERTIFICATE:ISO,CE,UL,ABNT ETC...

7.SURFACE: BLACK,PAINTING,COLD GALVANIZED,HOT DIP GALVANIZED, ELCTRO PAINTING

8.SUITABLE FOR PRESSURE MAX 1.6 MPA, TEMPERATURE MAX 200 C, AND FOR PIPELINE HOLDING WATER,OIL,GAS,ETC...

9.Cooperate Projects: Olympic Venue of 2008 Olympic Games-BirdNest; National Center for the Performing Arts;Main body of Beijing Capital International Airport Terminal 3;Beijing Yintai Center;Fortune Center(CBD),Global Trade Center,etc...



Products list

1

M&F Long Sweep Bend

290

Beaded Plug

2

Long Sweep Bend

291

Plain Plug

85

Crossovers

301

Round Cap

90

Elbow

310

Backnut

92

M&F Elbow

330

Union,Flat Seat

95

Union Elbow Flat Seat

331

M&F Union ,Flat Seat

97

M&F Union Elbow Flat Seat

340

Union,Taper Seat

120

45° Elbow

529

M&F Socket

130

Tee

90R

Elbow Reducing

180

Crosshead Female

130R

Tee Reducing

270

Entire Threads Socket

240

Socekt Reducing

270

Part Threads socket

241

Bushing

280

Hexagon Nipple

245

Nipple Reducing

Size

3/8”-6”

Material

Malleable Iron

Finishing

(Black) Painting, Galvanizing, Elctro-plating

Type

Banded,   Beaded  , Plain

Standard

ISO5922/IS049/ISO7-1 , BS EN1562:1997, DIN 2950/1692/2999

Mechanical Properties

Tensile Strength≥330MPA, Elongation rate≥8%, Hardness≤HB150

Mechanical Properties

C:2.4~2.9  Si:1.2~1.7   Mn:0.3~0.55P:0.12  S:0.18  Cr:0.09

Working pressure

Max 1.6MPA

Working temperature

Max 200°C

Producing Process

Pattern making - sand casting - heat treatment – galvanizing - threading - air pressure testing - packing

Thickness of Hot-Dip Galvanization

Average Thickness of Hot-Dip Galvanization: 70um

Usage

For pipeline convey water ,oil ,gas and so on

Testing

100% Air pressure testing, not below 0.5Mpa
